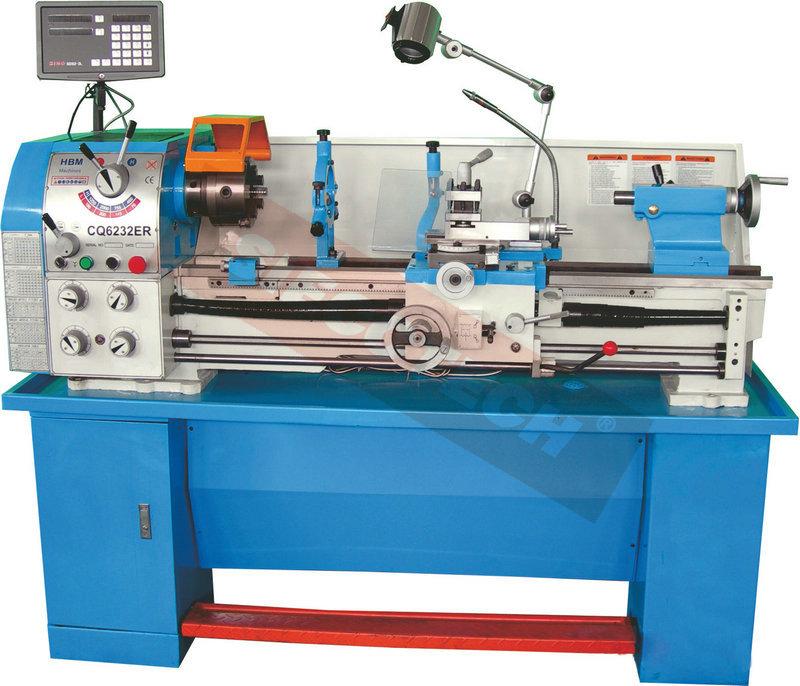

| Model | CQ6232E | |
| Capacity | Swing over bed | 320mm |
| Swing over gap | 450mm | |
| Swing over cross slide | 198mm | |
| Distance between centers | 880mm/1000mm | |
| Spindle | Speed steps | 8 |
| speed range | 70-2000rpm | |
| spindle bore | 38mm | |
| taper of bore | No.5Morse | |
| Travel | Longitudinal feeds range | 36kinds0.079-1.291mm/rev |
| Cross feeds range | 36kinds0.017-0.276mm/rev | |
| Max.travel of top slide | 76mm | |
| Max.travel of cross slide | 160mm | |
| Swiveling angle | ±45° | |
| Distance between turret and center line | 18mm | |
| Feed | Metric threads range | 36kinds0.4-7mm |
| Inch threads range | 36kinds4-60T.P.I | |
| Tailstock | Travel of tailstock sleeve | 75mm |
| Morse taper of tailstock sleeve | No.3Morse | |
| Others | Power of main motor | 4kw |
| Weight | 520kg | |
| size | 1680*750*1400mm | |
