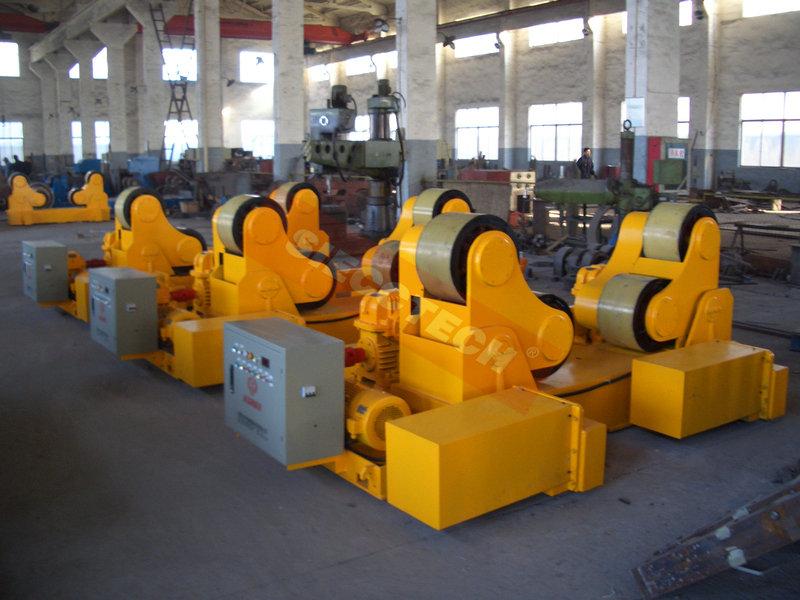

The HGK type welding rotators have advantages of the same kinds of products in domestic and international.We design and make them according to the requirments of the pressure ve-ssel factory.These products are applied in the handling and automatic welding of the metal circle containers,They have many advantages such as advanced technology,dependabe quality,easy operation.

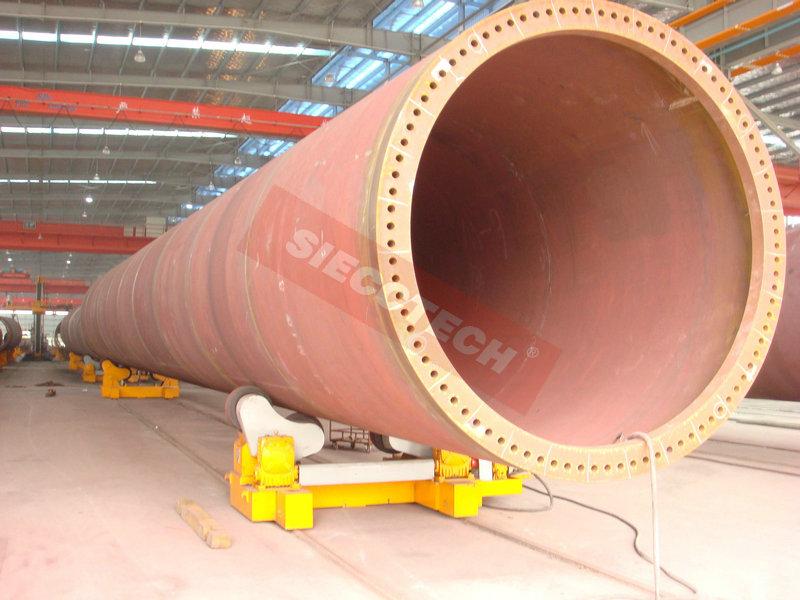

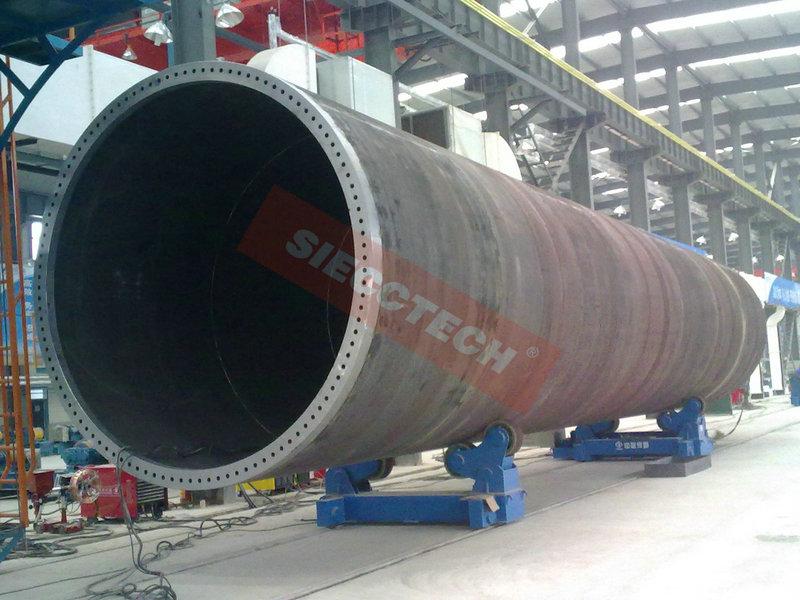

All rotators have passed the CE,they are used for oil industry,press vessel,wind tower production line,Pipe line production and any other round workpiece.
Welding turn roller are exported toBrazil,India,Jordan,South Africa,UK,Poland,Spain, and so on.

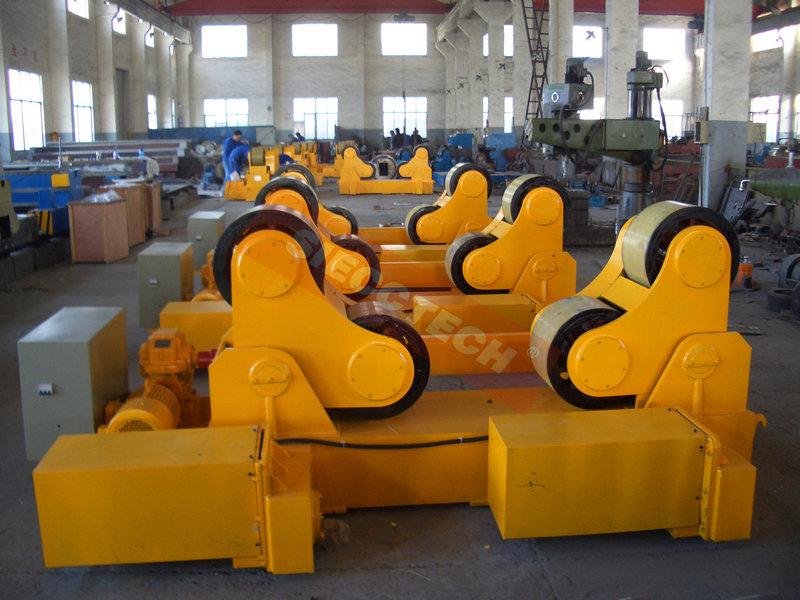

The rotators have two kinds,adjustable and conventional,It can used in all kind of the diameter,and frequency conversion setting,low sound,work placidity.
|
Type |
HGK-2 |
HGK-5 |
HGK-10 |
HGK-20 |
HGK-40 |
HGK-60 |
HGK-100 |
HGK-200 |
HGK-300 |
HGK-500 |
|
|
Load |
2 |
5 |
10 |
20 |
40 |
60 |
100 |
200 |
300 |
500 |
|
|
Wheel diameter(mm) |
250 |
250 |
300 |
350 |
450 |
500 |
550 |
700 |
800 |
900 |
|
|
Wheel width(mm) |
100 |
160 |
196 |
210 |
220 |
200(metal) |
220(metal) |
300(metal) |
300(metal) |
300(metal) |
|
|
Vessel diameter |
MIN(mm) |
150 |
250 |
300 |
500 |
500 |
500 |
800 |
800 |
1000 |
1000 |
|
MAX(mm) |
2000 |
2800 |
3200 |
4500 |
4800 |
5000 |
5000 |
5000 |
6000 |
8000 |
|
|
Wheel velocity(m/h) |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
|
|
Power of motor(kw) |
2*0.18 |
2*0.37 |
2*0.55 |
2*1.1 |
2*1.5 |
2*2.2 |
2*3 |
2*4 |
2*5.5 |
2*7.5 |
|
