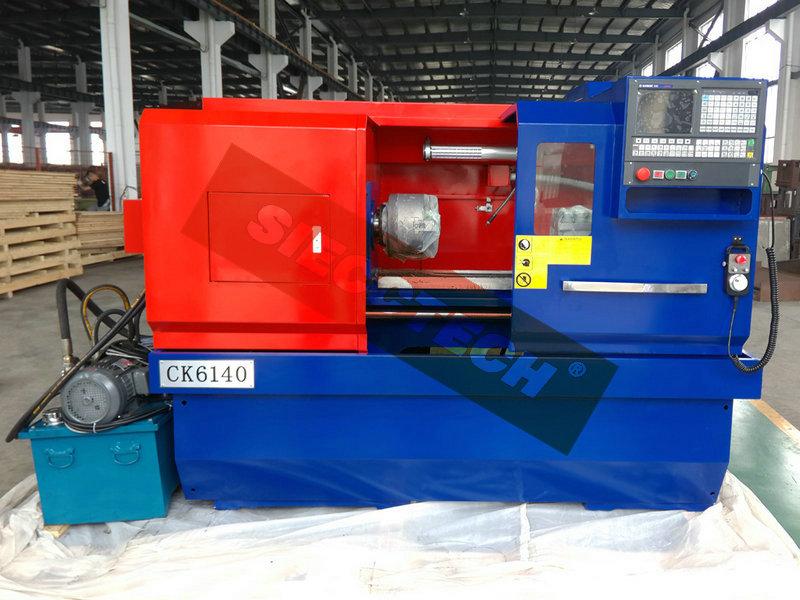

| Model | CK6136 | CK6140 | CK6150 | |
| CAPACITY | Max.swing over bed | 360mm | 400mm | 500mm |
| Max.swing over cross slide | 200mm | |||
| Length of the machine | 45075010001500mm | |||
| Center Distance | 3506509001400mm | |||
| Bed Width | 360mm | |||
| HEADSTOCK | Spindle hole | 52/65/80mm | ||
| Spindle nose | ISO-C6/D6/D8 | |||
| Spindle taper | MT6/Metric 70mm/Metric 85mm | |||
| Steps of spindle speed (Manual) | Variable | H/L Variable | Gears Variable | |
| Range of spindle speed | 400-2800rpm | 100-500rpm 400-2000rpm |
18-2000rpm | |
| CARRIAGE | Fastest speed of carriage | X/Z:8/10m/min | ||
| Repeat position precision | Z:0.013mm X:0.012mm | |||
| Number of stations | 4/6 stations or gang tools | |||
| Indexing time | 1sec | |||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||
| Taper of tailstock sleeve | MT4/MT5 | |||
| Max.travel of tailstock | 120mm | |||
| MOTOR | Main drive motor | 4/5.5/7.5KW | ||
| Coolant pump motor | 125W | |||
| SYSTEM | System brand | SIEMENS 808DFANUC 0i-MateGSK 980TDb | ||
| PACKING L*W*H |
Length(450mm) | 210*145*175cm | ||
| Length(750mm) | 240*145*175cm | |||
| Length(1000mm) | 275*145*175cm | |||
| Length(1500mm) | 325*145*175cm | |||
| ***STANDARD ACCESSORIES | ||||
| GSK 980TDb system | ||||
| HRB bearings in headstock | ||||
| 3-jaw | ||||
| Work lamp | ||||
| Coolant system | ||||
| 4 stations electric tool post | ||||
| High-Low speed headstock | ||||
| Dead centre and centre sleeve | ||||
| Paddings | ||||
| Electric oil pump | ||||
| One whole set spanner | ||||
| ***OPTIONAL ACCESSORIES | ||||
| Live centre | ||||
| 4-jaw | ||||
| Steady rest and follow rest | ||||
| Face plate | ||||
| Drive plate | ||||
| NSK or other bearings in headstock | ||||
| Gang tools or 6 stations electric tool post | ||||
| Hydraulic or pneumatic headstock and tailstock | ||||
| SIEMENS 808DFANUC 0i-Mate | ||||
