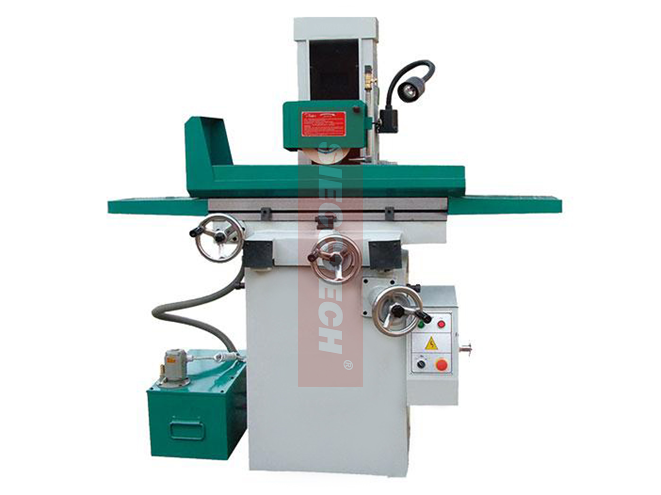

| Characteristics of machine tools: Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greenhouse, and equipped with a completely waterproof mazy design , in order to ensure the service life and the grinding of bearing surface roughness .Which marching with ball screw. It has the advantages of compact structure, easy to operate. A longitudinal guide rail worktable adopts rolling guide, rope wheel traction, light and flexible 机床特性： 主轴采用超精密P4级滚珠轴承，经过严格的测量预压后，在温室中装配而成，并配有完全防水的迷宫式设计，以确保轴承的使用寿命及 研磨的表面粗糙度。可选配滚珠丝杠。 具有结构紧凑，操作简便的特点。 工作台纵向导轨采用滚动导轨，绳轮结构牵引，轻便灵活。 |
| Technical Parameters 技术规格 | Unit 单位 | M 618 | ||
| Table maximum cutting area (L × W×H) 工作台最大切削面积 (长×宽×高) | mm | 500×190×335 | ||
| Working table movement 工作台移动量 | Max. Grinding Length 横向 | mm | 500 | |
| Max. Grinding width 纵向 | mm | 190 | ||
| Distance From Table Surface To Spindle Center 主轴中心至工作台最大距离 | mm | 335 | ||
| Slide way 工作台滑道 | V-type rail with Steel-ball 钢珠V平轨 | |||
| Maximum work load 工作台最大承受量 | Kg | 200 | ||
| Table size 工作台尺寸 | mm | 460×180 | ||
| Number of T -Slot 工作台T型槽 | mm×n | 14×1 | ||
| Number of T -Slot 工作台T型槽 | m/min | 3 ̶ 23 | ||
| Front and rear wheel feed 前后手轮进刀量 | mm | 0.02/Graduation2.5/revolution 0.02/格 2.5/圈 | ||
| On the hand wheel feed 上 下手轮进刀量 | mm | 0.01/Graduation1.25/revolution 0.01/格1.25/圈 | ||
| Wheel Size(dia×width×bore) 砂轮尺寸 (外径×宽度×内径 ) | mm | 180×13×31.75 | ||
| Spindle speed 主轴转速 | 50Hz | rpm | 2850 | |
| Variable frequency motor (matching) 调频电机(选配) | 0-6000 | |||
| Spindle motor 主轴电机 | Kw | 1.1 | ||
| Cooling pump 冷却泵 | Kw | 0.4 | ||
| Packing Size (L×W×H) 包装箱尺寸(长×宽×高) | mm | 1240×1080×1680 | ||
| Cross、Net 毛重、净重 | T | O.75、 0.65 | ||
